| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |

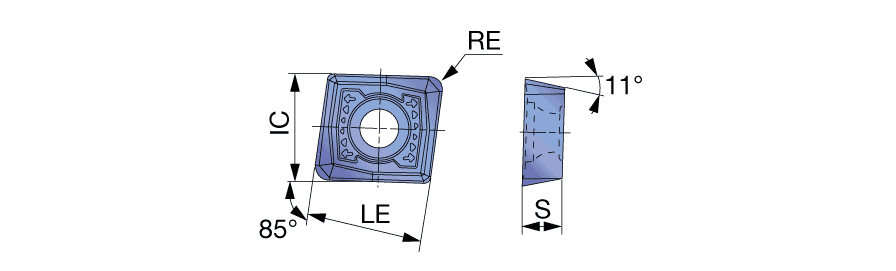

| Corner Radius (RE) | 0.0629″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.394″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 1/2″ | Cutting Edge Effective Length (LE) | 0.531″ |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.187″ | Body Material | Carbide |
| Coating | TiAlN | Unit | I |
Product Features
| Family Description | Insert for plunging tool with MJ chipbreaker | FamilyName | APMT120416-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2050
Name
Milling Indexable Inserts
FamilyName
APMT120416-MJ
BrandName
Tungaloy
