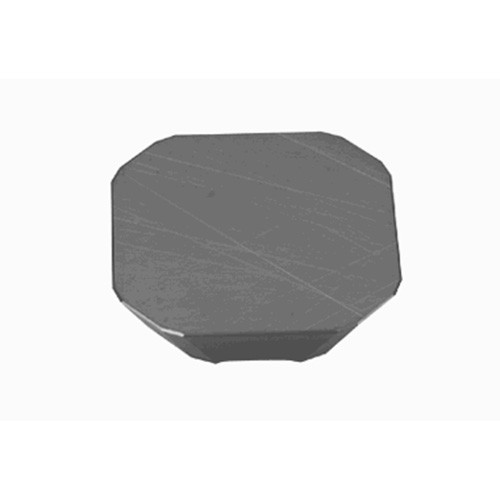

SEKN42ZTN AH120
Flat-top square insert with 20deg relief angle for 45deg corner angle
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Tool Type | Single sided Inserts |
| Insert Width (W1) | 1/2″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 1/2″ | Measurement Type | Inch |
| Insert Thickness (S) | 1/8″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.063″ | Unit | I |
| Coating | TiAlN |
Product Features
| Family Description | Flat-top square insert with 20deg relief angle for 45deg corner angle | FamilyName | SECN/SEEN/SEKN 1203 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.1521
Name
Milling Indexable Inserts
FamilyName
SECN/SEEN/SEKN 1203
BrandName
Tungaloy
