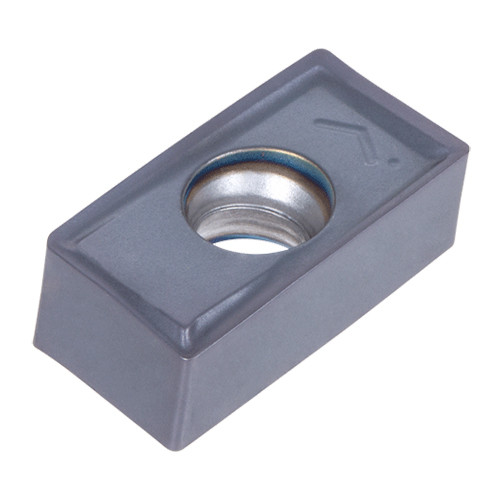

LXMU10T308PER-MM AH3225
Double-sided insert with four total cutting edges and MM chipbreaker for general purpose
Price: Log in For Price

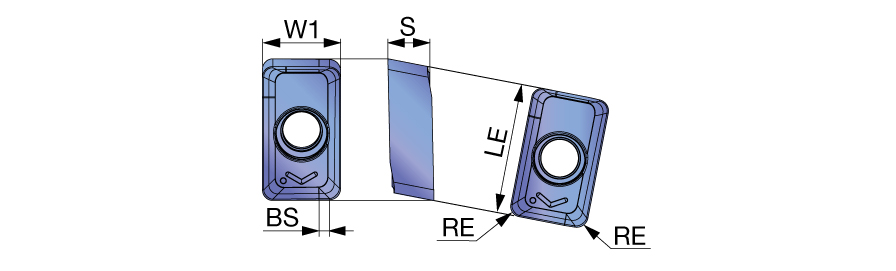

| Applicable Material | | Steel | Stainless Steel | | Maximum Feed per Tooth (fz(max)) | 0.0118 in/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.354″ | Minimum Feed per Tooth (fz(min)) | 0.0014 in/tooth |
| Insert Width (W1) | 0.236″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.126″ | Cutting Edge Effective Length (LE) | 0.394″ |
| Wiper Edge Length (BS) | 0.031″ | Measurement Type | Inch |
| Coating | TiAlSiCrN | Body Material | Carbide |
| Grade | AH3225 | Unit | I |
Product Features
| Family Description | Double-sided insert with four total cutting edges and MM chipbreaker for general purpose | FamilyName | LXMU-MM |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
LXMU-MM
BrandName
Tungaloy
