ASMT11T312PDPR-MJ AH3225
High performance insert with MJ chipbreaker for general purpose
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | AH3225 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0039 in/tooth |

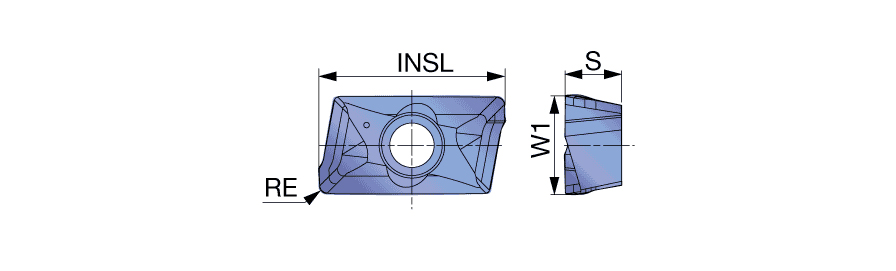

| Insert Length (INSL) | 0.484″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0472″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.417″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Insert Width (W1) | 0.264″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 0.264″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.146″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.039″ | Unit | I |
| Coating | TiAlSiCrN |
Product Features
| Family Description | High performance insert with MJ chipbreaker for general purpose | FamilyName | ASMT11-MJ |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
ASMT11-MJ
BrandName
Tungaloy
Related Documentation

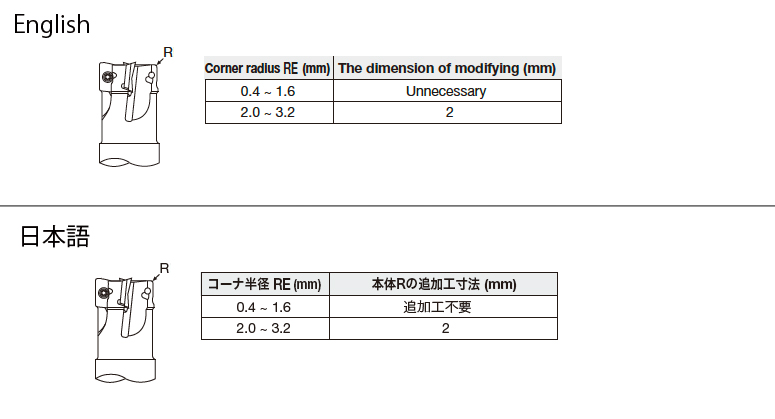

When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
