ONMU0507ANEN-MJ AH120

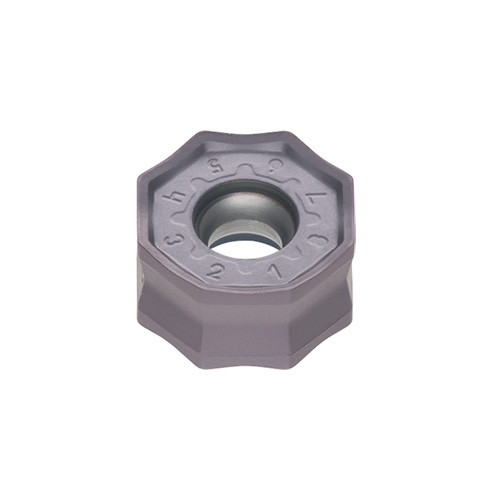

Double-sided octagonal inserts, M class, with 16 edges and MJ chipbreaker
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0197 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

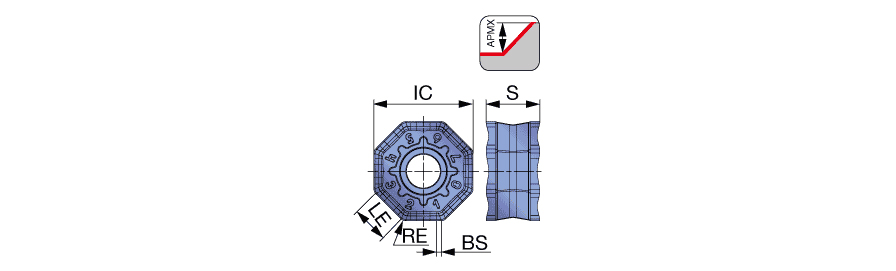

| Corner Radius (RE) | 0.0314″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Depth of Cut Maximum (APMX) | 0.134″ | Number of Cutting Edges | 16 |
| Inscribed Circle Diameter (IC) | 0.512″ | Cutting Edge Effective Length (LE) | 0.193″ |
| Insert Thickness (S) | 0.276″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.028″ | Body Material | Carbide |
| Coating | TiAlN | Unit | I |
| Grade | AH120 |
Product Features
| Family Description | Double-sided octagonal inserts, M class, with 16 edges and MJ chipbreaker | FamilyName | ONMU-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2623
Name
Milling Indexable Inserts
FamilyName
ONMU-MJ
BrandName
Tungaloy
