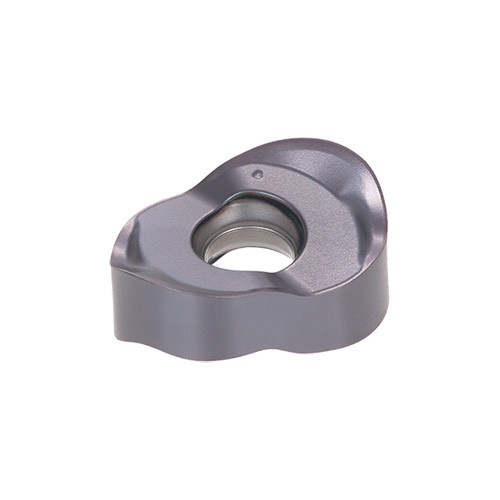

LNMX0607R6-MJ AH120
Double-sided radius insert with 4 edges and MJ chipbreaker
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Profile Milling | | Maximum Feed per Tooth (fz(max)) | 0.0236 in/tooth |
| Insert Length (INSL) | 0.709″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362″ | Minimum Feed per Tooth (fz(min)) | 0.0059 in/tooth |
| Depth of Cut Maximum (APMX) | 0.236″ | Number of Cutting Edges | 4 |
| Insert Width (W1) | 0.496″ | Measurement Type | Inch |
| Inscribed Circle Diameter (IC) | 0.496″ | Body Material | Carbide |
| Insert Thickness (S) | 0.291″ | Unit | I |
| Coating | TiAlN |
Product Features
| Family Description | Double-sided radius insert with 4 edges and MJ chipbreaker | FamilyName | LNMX-MJ |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Milling Indexable Inserts
FamilyName
LNMX-MJ
BrandName
Tungaloy
