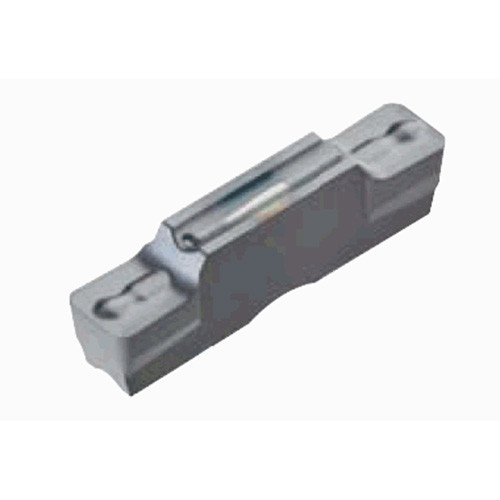

DTE265-015 T9225
Precision double-ended inserts for external/face grooving & turning, tolerance of insert width +-0.0008 inch (only DTE3-,4-,5-,6-*** +-0.002 inch)
Price: Log in For Price

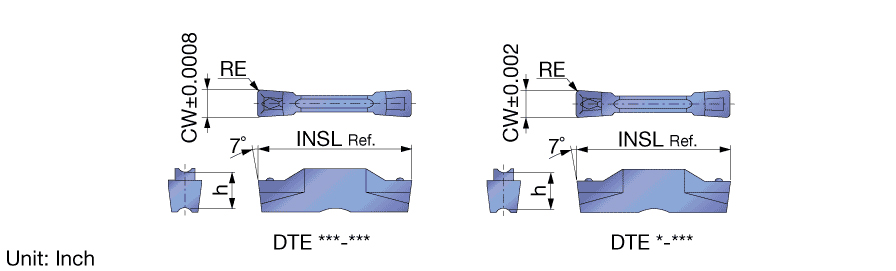

| Cutting Width (CW) | 0.104″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Corner Radius (RE) | 0.0059″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.728″ | Number of Cutting Edges | 2 |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9225 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | | Unit | I |
Product Features
| Family Description | Precision double-ended inserts for external/face grooving & turning, tolerance of insert width +-0.0008 inch (only DTE3-,4-,5-,6-*** +-0.002 inch) | FamilyName | DTE |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Inserts
FamilyName
DTE
BrandName
Tungaloy
