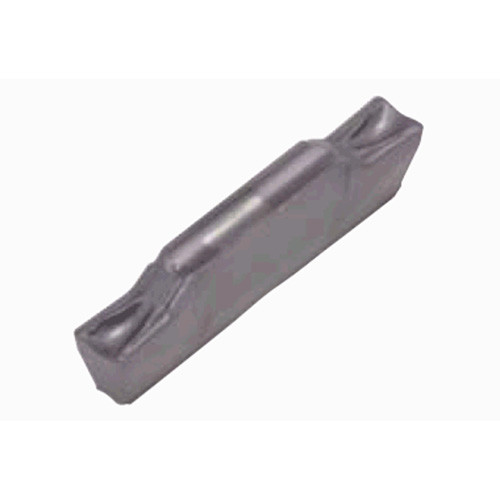

DTX6-080 AH7025

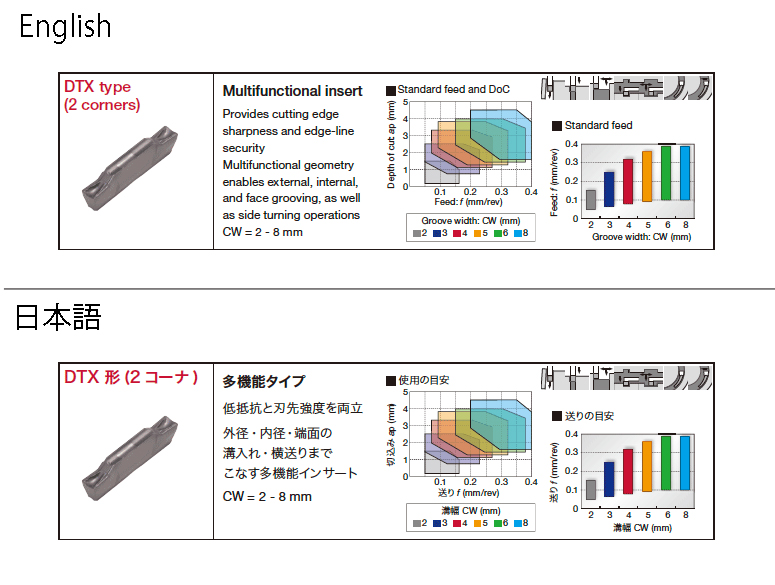

Double-ended inserts for external / internal / face grooving & turning, tolerance of insert width +-0.002 inch
Price: Log in For Price

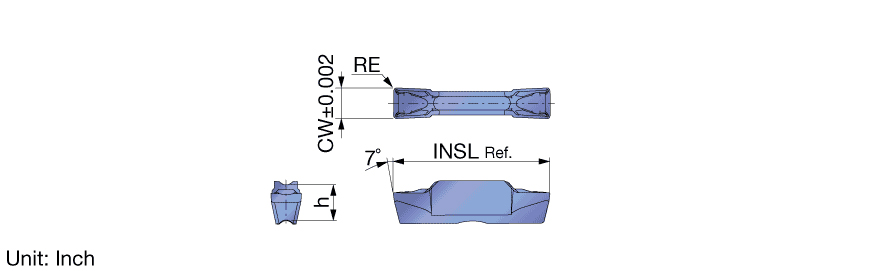

| Cutting Width (CW) | 0.236″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0315″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.925″ | Number of Cutting Edges | 2 |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH7025 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | | Unit | I |
Product Features
| Family Description | Double-ended inserts for external / internal / face grooving & turning, tolerance of insert width +-0.002 inch | FamilyName | DTX |
| Remarks | For "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Inserts
FamilyName
DTX
BrandName
Tungaloy
