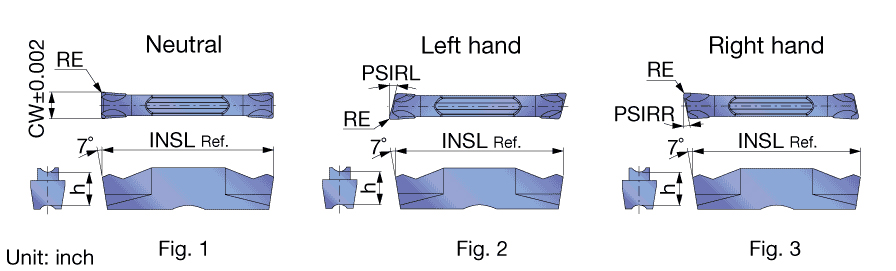

| Cutting Width (CW) | 0.118″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0079″ | Cutting Edge Angle Major Left Hand (PSIRL) | 6 Degrees |
| Insert Length (INSL) | 0.787″ | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 1.417″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH7025 | Body Material | Carbide |
| Application | | Inserts | | Unit | I |
Product Features
| Family Description | Double-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.002 inch | FamilyName | DGM |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name

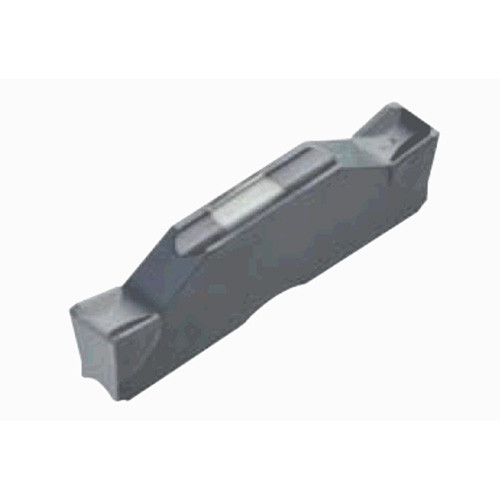

Parting Off Indexable Inserts
FamilyName
DGM
BrandName
Tungaloy
Related Documentation

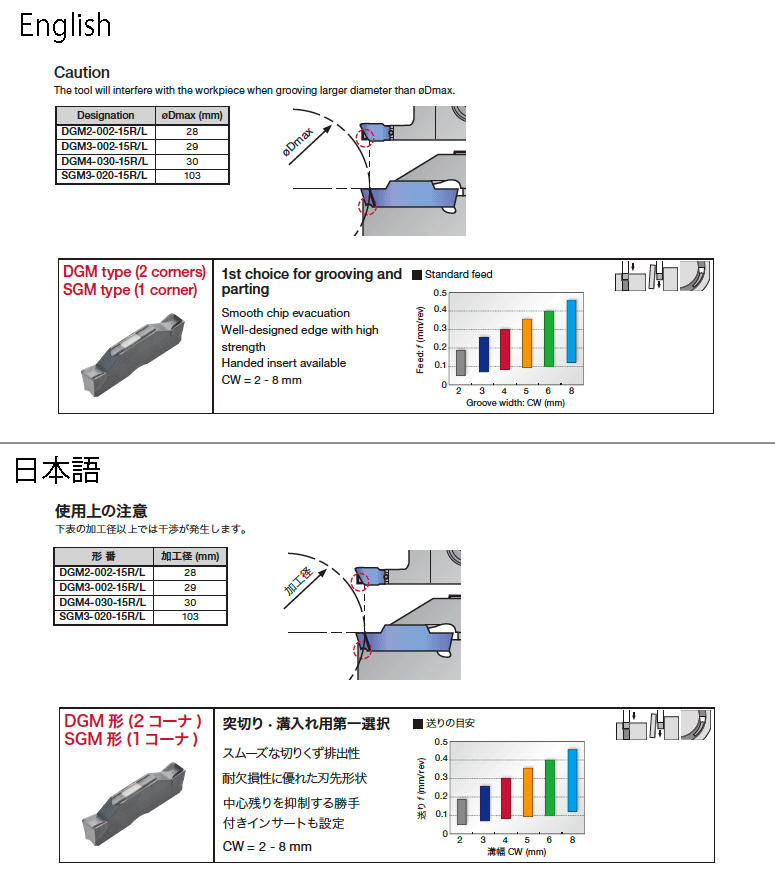

Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
