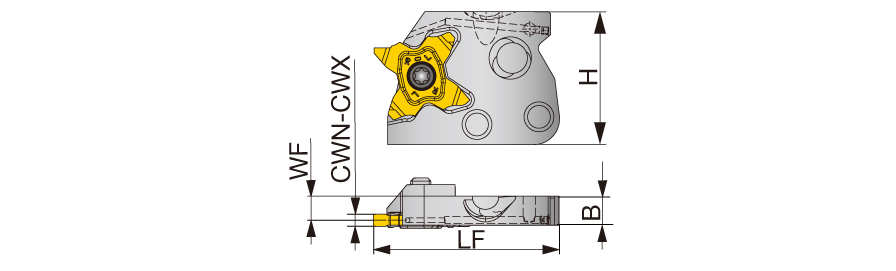

| Cutting Width Minimum (CWN) | 0.02″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 1/8″ | Application | | External grooving | |
| Shank Height (H) | 1.299″ | Body Material | Steel |
| Shank Width (B) | 0.283″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.236″ | Measurement Type | Inch |
| Functional Length (LF) | 1.811″ | Unit | I |
Product Features

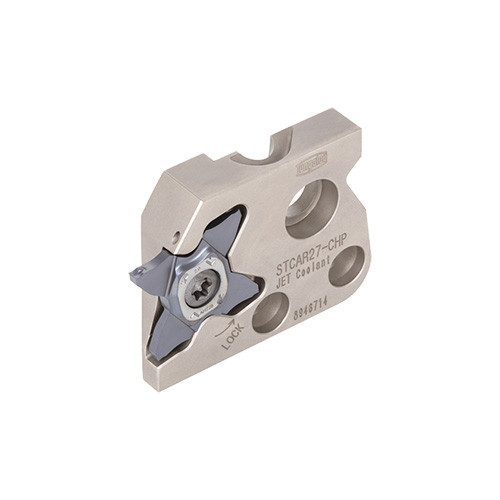

| Family Description | Modular blades for external grooving & parting, with high pressure coolant channels | FamilyName | STCAR/L27-CHP |
| Remarks | Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0000
Name
Groove/Turn Indexable Holders
FamilyName
STCAR/L27-CHP
BrandName
Tungaloy
