JS254X-STCL18
Precision grooving tools with uniquely shaped insert for Swiss type machine, automatic and general lathes, Round shank
Price: Log in For Price

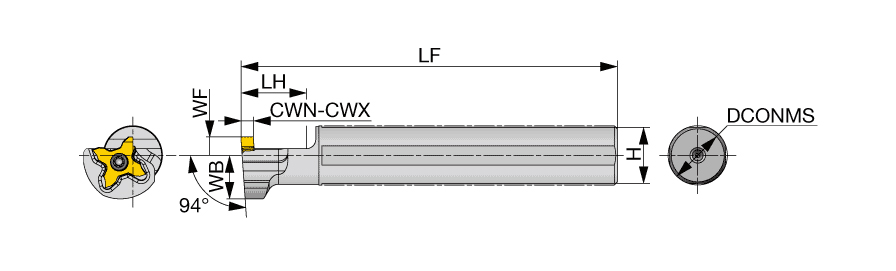

| Cutting Width Minimum (CWN) | 0.013″ | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 1/8″ | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 0.945″ | Body Material | Steel |
| Functional Width (WF) | 0.394″ | Tool Type | TOOLHOLDERS - ROUND SHANK |
| Functional Length (LF) | 4.724″ | Measurement Type | Inch |
| Head Length (LH) | 0.787″ | Unit | I |
| Connection Diameter Machine Side (DCONMS) | 1″ |
Product Features
| Family Description | Precision grooving tools with uniquely shaped insert for Swiss type machine, automatic and general lathes, Round shank | FamilyName | JS-STCL18 |
| Remarks | The right hand insert (TC*18R...) is used for the left hand toolholders (JS** STCL...). Torque: Recommended torque (Nm) for clamping. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
1.0362
Name
Groove/Turn Indexable Holders
FamilyName
JS-STCL18
BrandName
Tungaloy
