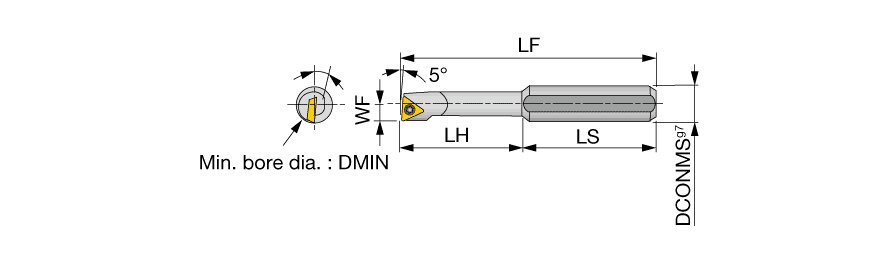

| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | Boring Bars | |
| Functional Length (LF) | 87 mm | Rake Angle Radial (GAMF) | -8 Degrees |
| Head Length (LH) | 55 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 5 mm | Body Material | Carbide |
| Master Insert Identification (MIID) | TPGT080204 | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 10 mm | Unit | M |
Product Features
| Family Description | Top-Borer Tool for posi triangle insert with 11 deg clearance | FamilyName | S/C-STUPR/L |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (STUPL** type), and the left hand insert (L) is used for the right hand toolholders (STUPR** type). | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.0960
Name
Indexable Internal Turning Tools
FamilyName
S/C-STUPR/L
BrandName
Tungaloy
