| Body Diameter (BD) | 69 mm | Shank Size (SS) | 50. |
| Body Length (LB) | 81 mm | Tool Type | DIN 69871 |
| Overall Length (OAL) | 100 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 6 mm |
| Connection Diameter Workpiece Side (DCONWS) | 32 mm | Measurement Type | Metric |
| Connection Retention Knob Thread Size (CRKS) | M24 | Thread Designation Inside (THID) | M20x2 |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 32 mm | Body Material | Steel |
| Application | | Tapered shape interface | | Unit | M |
Product Features

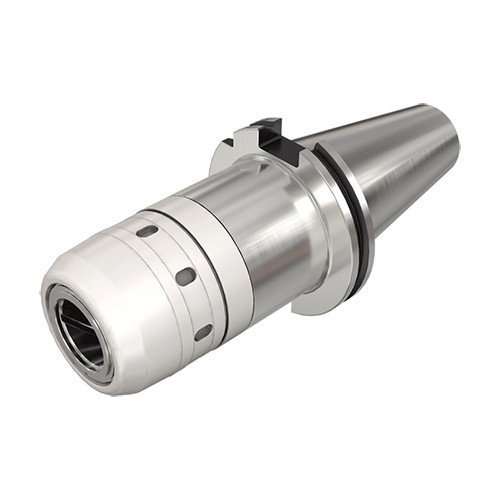

| Family Description | TungMax endmill chuck holders with DIN69871 shank | FamilyName | DIN69871-TUNGMAX |
| Remarks | Add B for coolant through the flange. | BrandName | Tungaloy |
| COO | ISRAEL |
Shipping Info
Weight per item
1.1850
Name
Milling Chucks
FamilyName
DIN69871-TUNGMAX
BrandName
Tungaloy
