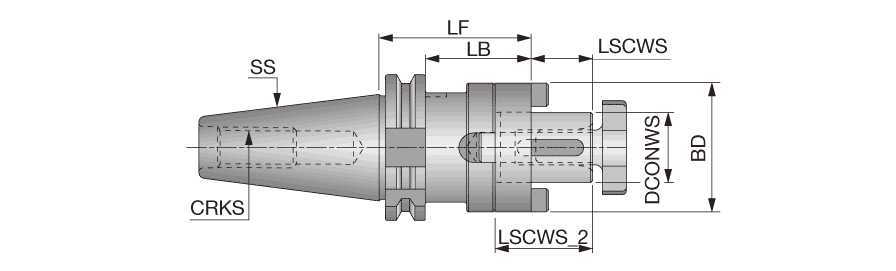

| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Application | | Tapered shape interface | |
| Shank Size (SS) | SK40 | Tool Type | DIN 69871 |
| Body Length (LB) | 80.9 mm | Measurement Type | Metric |
| Body Diameter (BD) | 32 mm | Body Material | Steel |
| Overall Length (OAL) | 100 mm | Unit | M |
| Connection Retention Knob Thread Size (CRKS) | M16 |
Product Features

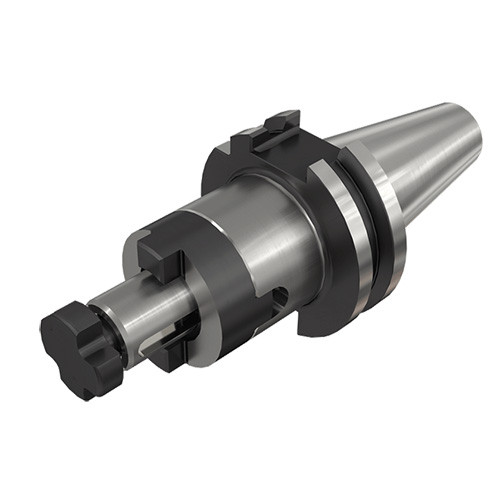

| Family Description | Combination holder with DIN69871 shank | FamilyName | DIN69871-SEMC (combination) |
| COO | ITALY | BrandName | Tungaloy |
Shipping Info
Weight per item
1.3930
Name
Shell Mill Holders
FamilyName
DIN69871-SEMC (combination)
BrandName
Tungaloy
