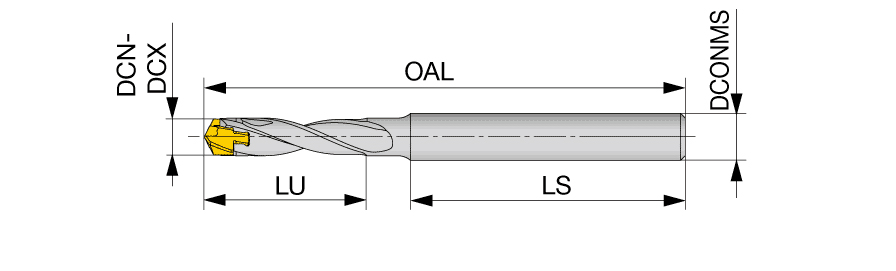

| Usable Length (LU) | 0.618″ | Overall Length (OAL) | 2.415″ |
| Application | | General Drilling | | Shank Length (LS) | 1.378″ |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Master Insert Identification (MIID) | DMP050 |
| Insert Seat Size Code (SSC) | 5 | Point Length (PL) | 0.029″ |
| Cutting Diameter Minimum (DCN) | 0.1969″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.2126″ | Unit | I |
Product Features

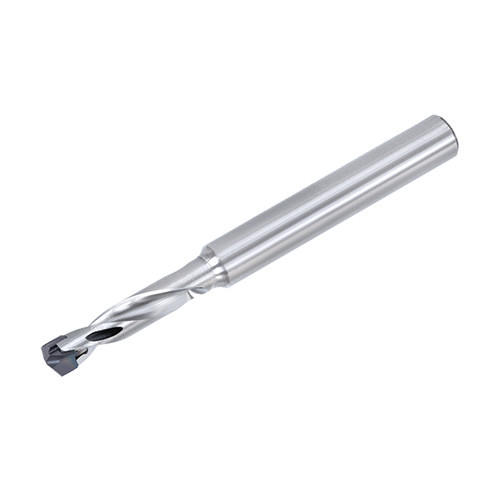

| Family Description | AddMeisterDrill Exchangeable head drill with cylindrical shank | COO | JAPAN |
| Remarks | An overall length (OAL) differs based on each head geometry. |
