GXE22-0DT D30

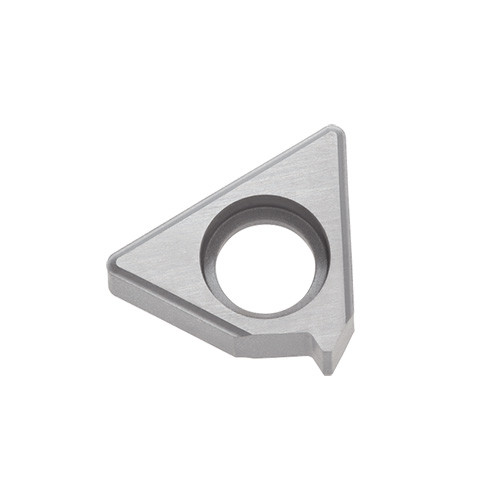

Lead angle adjustment shim for screw-on / clamp-on dual DT-type ST-tools
Price: Log in For Price

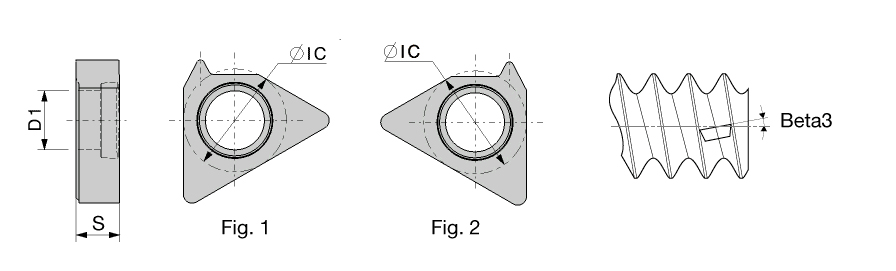

| Application | | Accessories | | Insert Thickness (S) | 0.187″ |
| Measurement Type | Inch | Fixing Hole Diameter (D1) | 0.26″ |
| Body Material | Steel | Grade | D30 |
| Cutting Direction (HAND) | Right Hand | Cutting Edge Material | Carbide |
| Insert Seat Size Code (SSC) | 22 | Unit | I |
| Inscribed Circle Diameter (IC) | 1/2″ | Coating | Uncoated |
Product Features
| Family Description | Lead angle adjustment shim for screw-on / clamp-on dual DT-type ST-tools | COO | JAPAN |
Shipping Info
Weight per item
0.0331
