JSXXR1212X09-S-CHP
Parting off tool with high pressure coolant channels, for sub spindol in swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose.
Price: Log in For Price

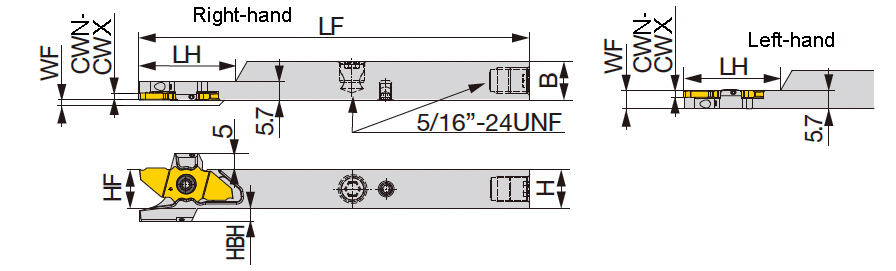

| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.6 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 20 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 121 mm | Measurement Type | Metric |
| Head Length (LH) | 19.4 mm | Insert Seat Size Code (SSC) | - |
| Cutting Depth Maximum (CDX) | 10.5 mm | Functional Width (WF) | 0.2 mm |
| Overall Height (OAH) | 12 mm | Tool Assembly Length (LTA) | 40 mm |
| Application | | Ext Threading | External grooving | For Miniature machining | Parting off | | Unit | M |
Product Features
| Family Description | Parting off tool with high pressure coolant channels, for sub spindol in swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose. | FamilyName | JSXXR/L-X-S-CHP |
| Remarks | When JX**12... insert is used, "LF" and "LH" are shorter 2 mm. When JX**06... insert is used, "LF" and "LH" are shorter 4 mm. When JX**20... insert is used, "LF" and "LH" are longer 2 mm. The right hand insert (JX****R...) is used for the right hand toolholders (JSXXR...), and the left hand insert (JX****L...) is used for the left hand toolholders (JSXXL...). Torque: Recommended torque (Nm) for clamping | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1460
Name
Parting Off Indexable Holders
FamilyName
JSXXR/L-X-S-CHP
BrandName
Tungaloy
