ASN10R160M40.0E16-07

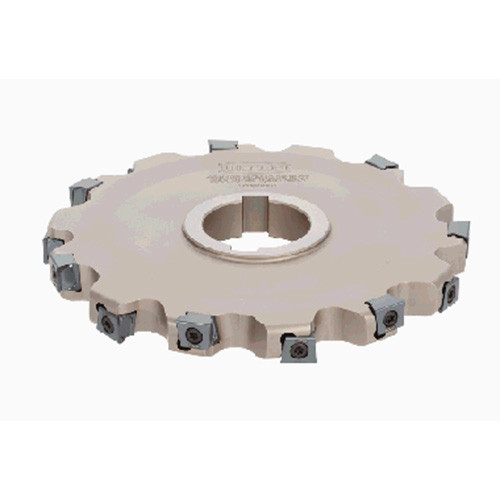

Axial drive type Slot milling cutter with tangentially mounted inserts
Price: Log in For Price

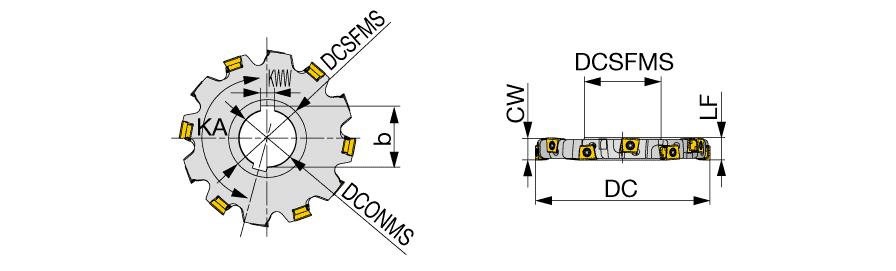

| Cutting Diameter (DC) | 160 mm | Overall Length (OAL) | 16 mm |
| Cutting Item Count (CICT) | 14 | Master Insert Identification (MIID) | LMEU1008... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 7 | Application | | Slot Milling | |
| Cutting Depth Maximum (CDX) | 51.5 mm | Tool Type | Double-sided slotting cutters |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 16 mm | Body Material | Steel |
| Cutting Width (CW) | 16 mm | Unit | M |
Product Features
| Family Description | Axial drive type Slot milling cutter with tangentially mounted inserts | FamilyName | ASN |
| COO | USA | BrandName | Tungaloy |
Shipping Info
Weight per item
1.9630
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
ASN
BrandName
Tungaloy
